Internal product code: QZ-901
PRODUCT BENEFITS

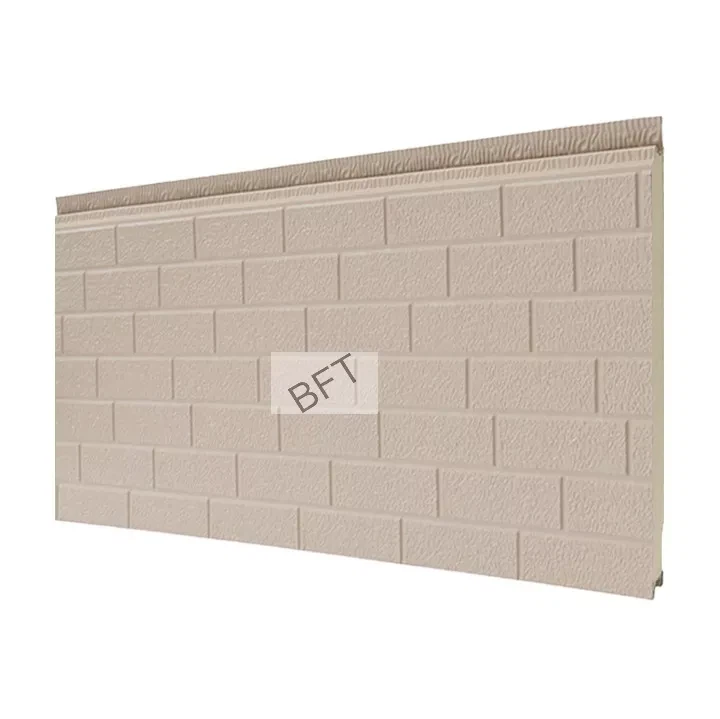

The first layer is aluminum-zinc plated steel plate, which is not easy to rust. The surface is coated with fluorocarbon paint, which is not easy to fade. The second layer of foam polyurethane, thermal insulation, flame retardant. The third layer is aluminum foil.
PRODUCT PARAMETER
|
Surface |
0.3 mm Al-zn alloy coated steel sheet (Al 55%, Zn 43%) |
|
Middle |
16mm PU foam |
|
Back |
Aluminium foil paper |
|
Weight |
3.7kgs/sqm |
|
Standard size |
L3800mm*W380mm*H16mm(length can be customized) |
|
Waterproof Rate |
0.08% |
|
Wind Resistance |
8.0 Kpa |
|
Thermal Conductivity |
0.018W/m·k |
|
Thermal Resistance |
2.09sqm k/w |
|
Compressive Strength |
52.7kpa |
|
Fireproof grade |
B1 |
PRODUCT CASE
PRODUCT INSTALLATION
Metal insulation steel plate white brickThe installation is very simple. Two workers can complete the installation, saving time and cost to the greatest extent. Complete the construction as soon as possible.
PACKAGE TRANSPORTATION
(1) Board cabinet size:
It is generally required to be 5.8m for a 20 feet cabinet,
According to the needs of customers, the total length of 40 feet cabinet is less than 11.8 meters
(2) Loading information:
The size and specification of the 20 feet small cabinet are about 5.898 × 2.352 × 2.385m, and the assembly level is about
1300(excluding spare parts space)
40 large cabinets (high cabinet): 12.032 × 2.352 × 2.69M, about 3300 flat (excluding spare parts space)
FAQ
Q:Where does your factory locate?
A:Zibo City, Shandong Province, China.
Q:Are you trading company or factory? Can we visit your factory?
A:We are a factory,warmly welcome to our factory.
Q: What's your MOQ:
A: MOQ is 1*20GP container(above 500m²
Q: How long is your delivery time?
A: 10-15 days.
Q:Can we order products of different colors?
A:Sure. We can produce according to the customer's requirements.
